Initial Prototype

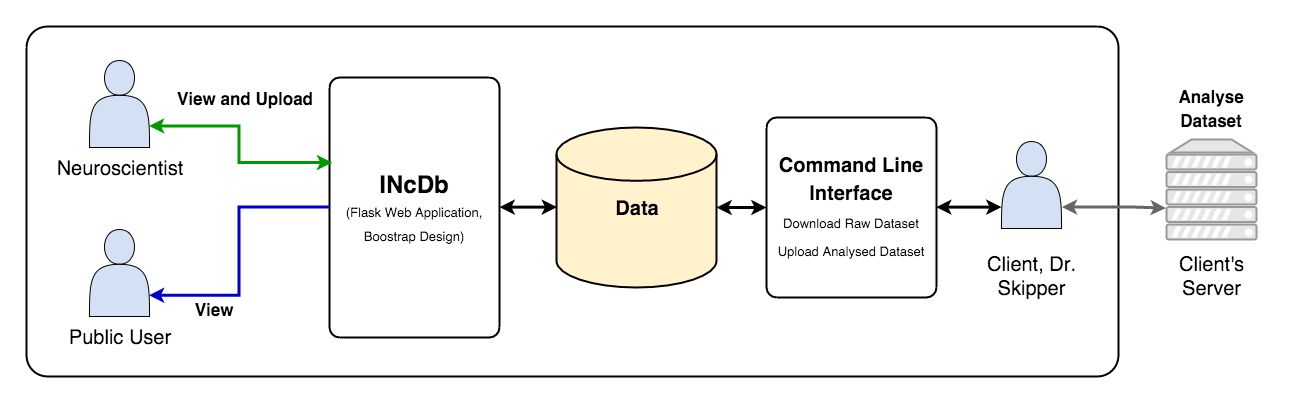

System Overview

Initial Prototype (COMP204P)

Our prototype for COMP204p is an Flask application, INcDb User. The application is based on the Flask-User-starter-app as we will be using the Flask extension, Flask-User, to implement our user management functionality. The source code of the INcDb User is on https://github.com/UCL-CS35/incdb-user.

Add Relevant Fields

Beside the basic user management functionality from the starter app, we added 2 new fields, title and affiliation to reflect our project requirements.

Support latest version Flask-User

As the starter-app is dependent on an older version of Flask-User, we updated the code to support the latest version of Flask-User.

Unit Testing

We also introduce test cases to experiment with pytest, our selected testing tool. See Testing Strategy for more information about testing.

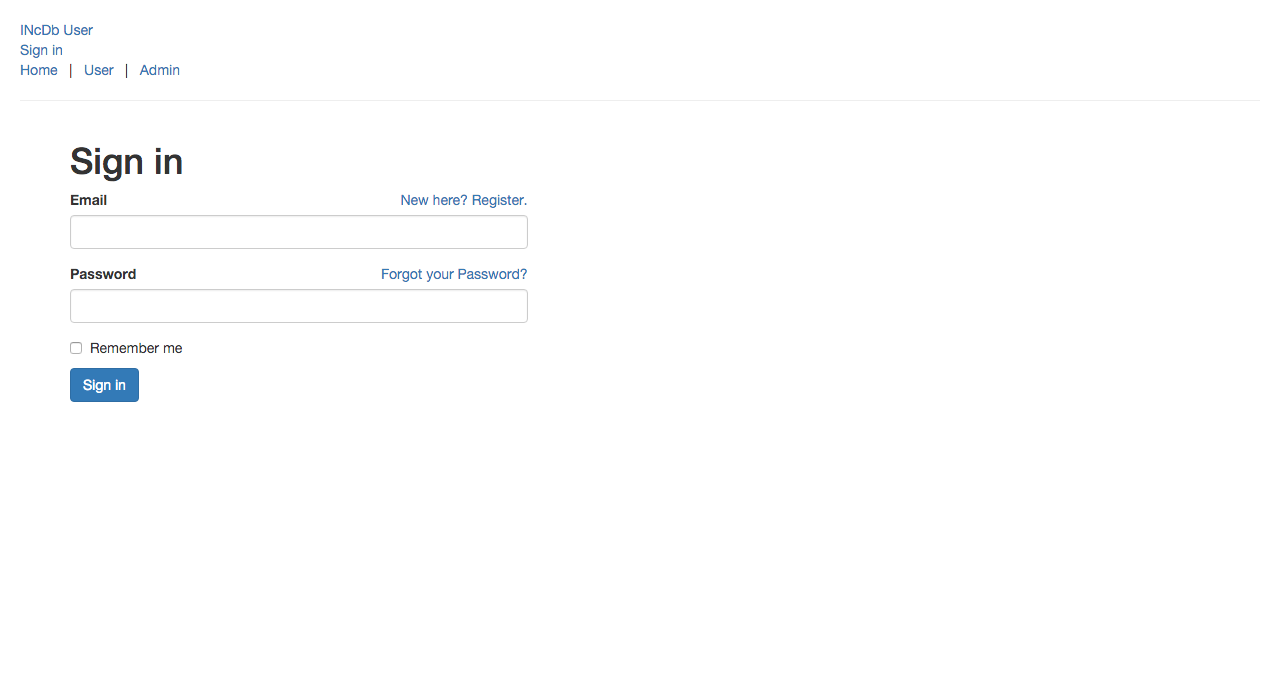

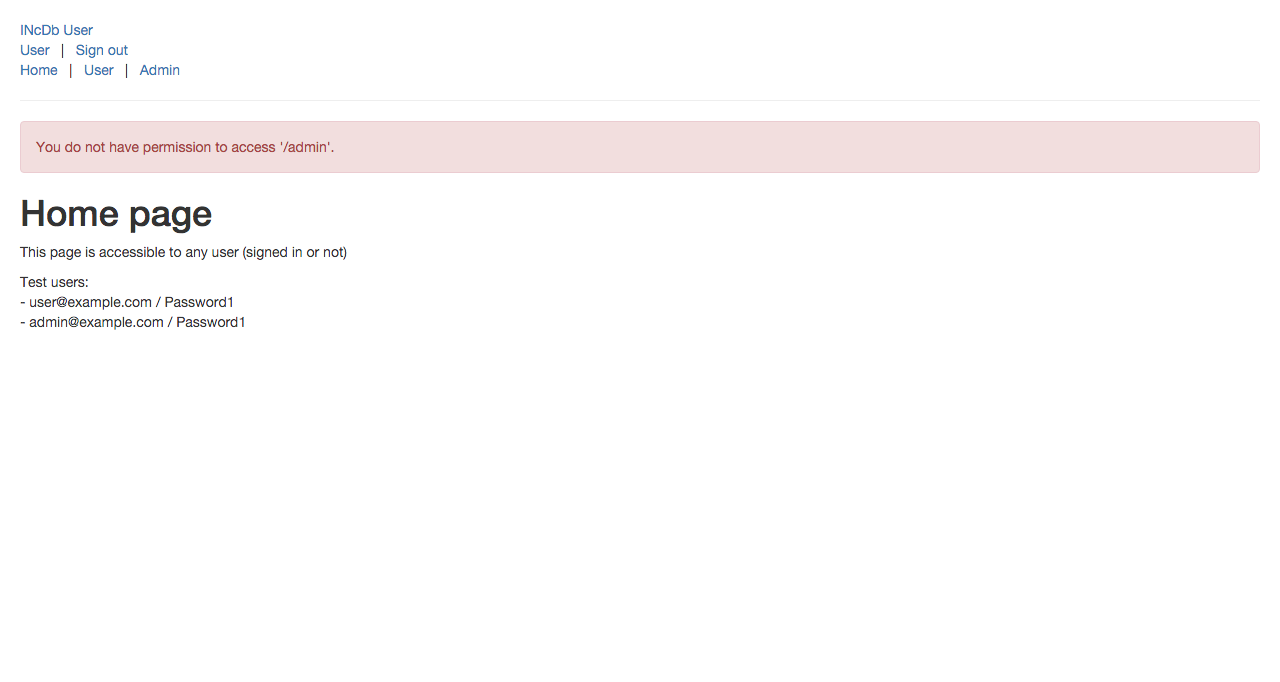

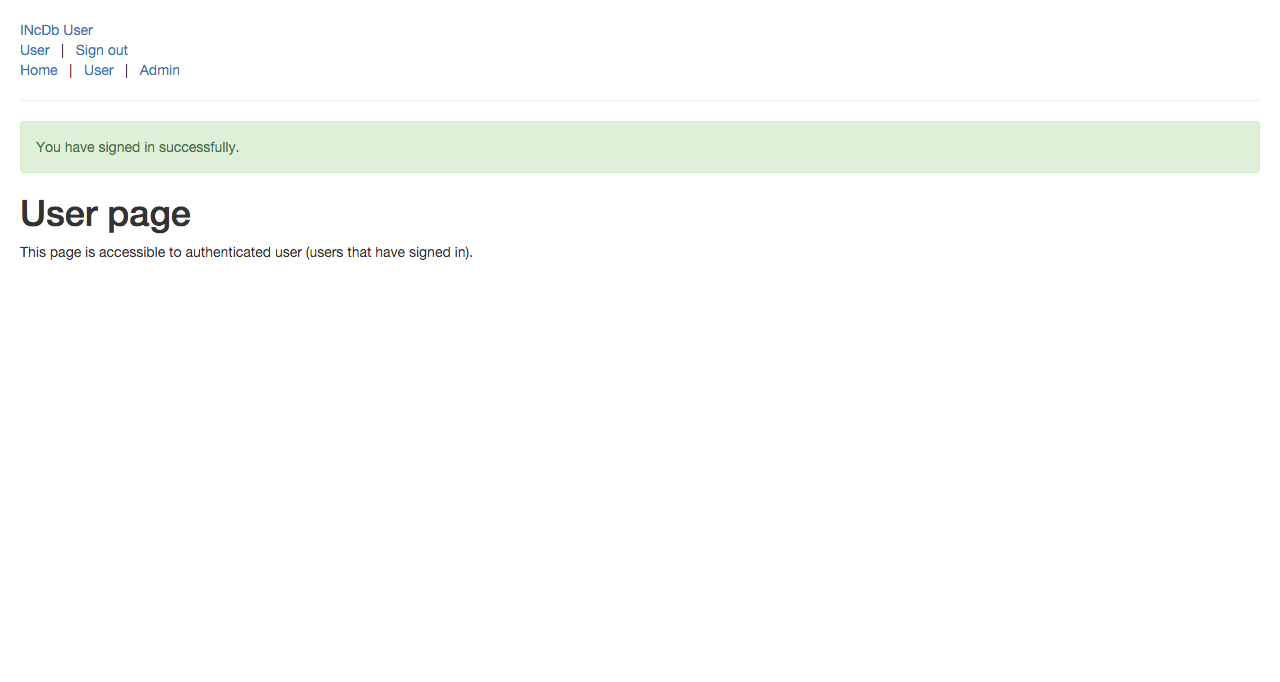

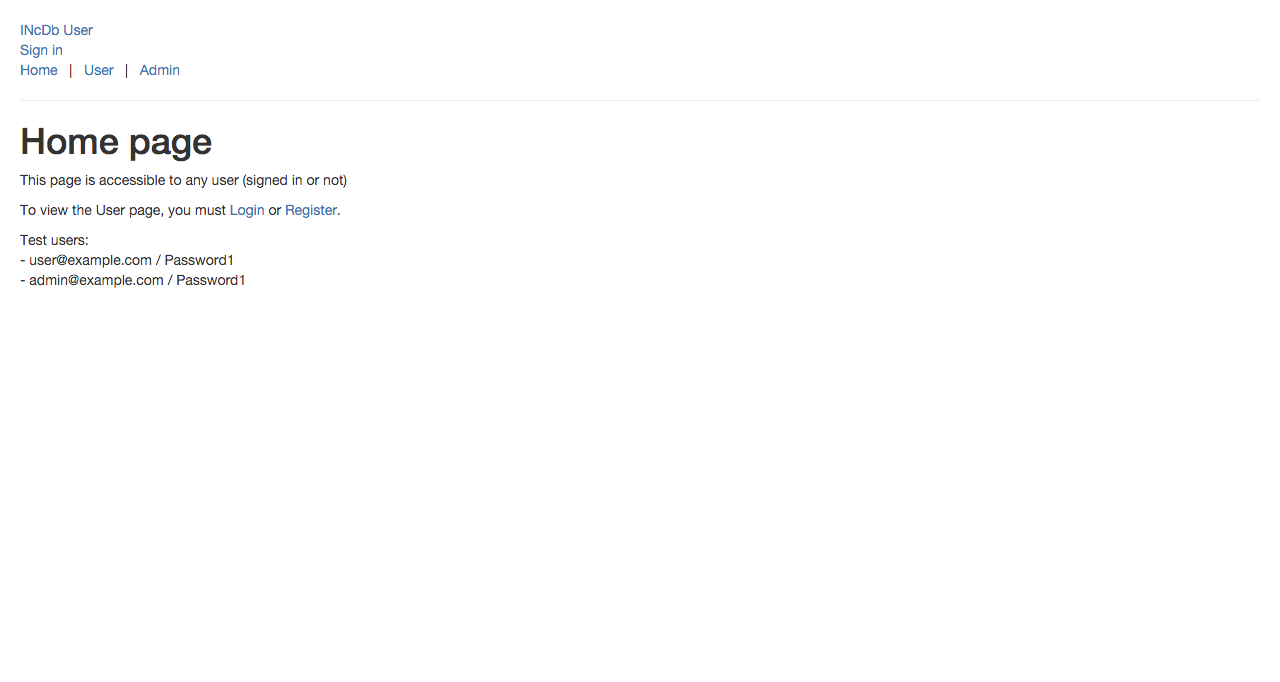

Screenshots

Setup

Install Virtual Environment using pip:

pip install virtualenv

Cloning the app

mkdir INcDb
cd INcDb
git clone https://github.com/UCL-CS35/incdb-user.git incdb-user

Create the ‘incdb-user’ virtual environment

mkvirtualenv incdb_user_env

Install required Python packages

cd /path/to/incdb-user
workon incdb_user_env
pip install -r requirements.txt

Configuring the app Copy the app/env_settings_example.py to an env_settings.py that resides outside the code directory and point the OS environment variable ENV_SETTINGS_FILE to this file.

# Copy env_settings.py and place it outside of the code directory
cd /path/to/project
cp app/env_settings_example.py ../env_settings.py

# Point the OS environment variable `ENV_SETTINGS_FILE` to this file
export ENV_SETTINGS_FILE=/path/to/env_settings.py
Before deploying this application, we will have to configure the database URL and SMTP account that will be used to access the database and to send emails.

Initializing the Database

# Create DB tables and populate the roles and users tables
python manage.py init_db

Running the app

# Start the Flask development web server
./runserver.sh    # will run "python manage.py runserver"

Point your web browser to http://localhost:5000/

You can make use of the following users:

• email user@example.com with password Password1.
• email admin@example.com with password Password1.

Data Model for INcDb User

Users Table

Roles Table

User Roles Table

Dependency for INcDb User
