Appendices

User Manual

Home Page

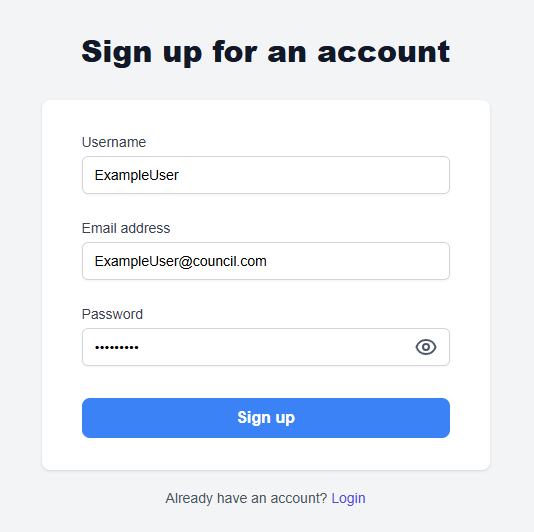

Upon landing users are prompted to sign up, with username , email address and a password. Security measures have been added to enhance security by forcing the user to enter password with special characters , uppercase letters etc.

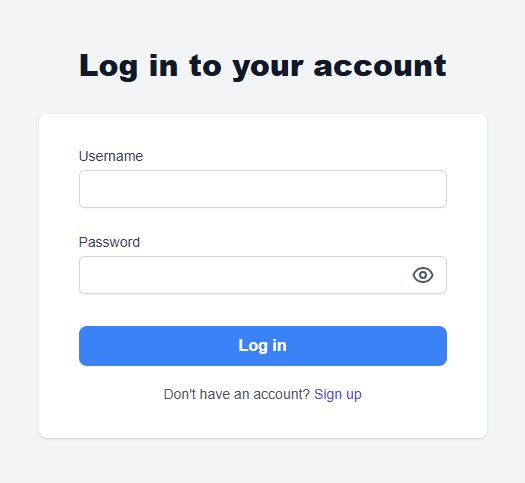

Login	Signup

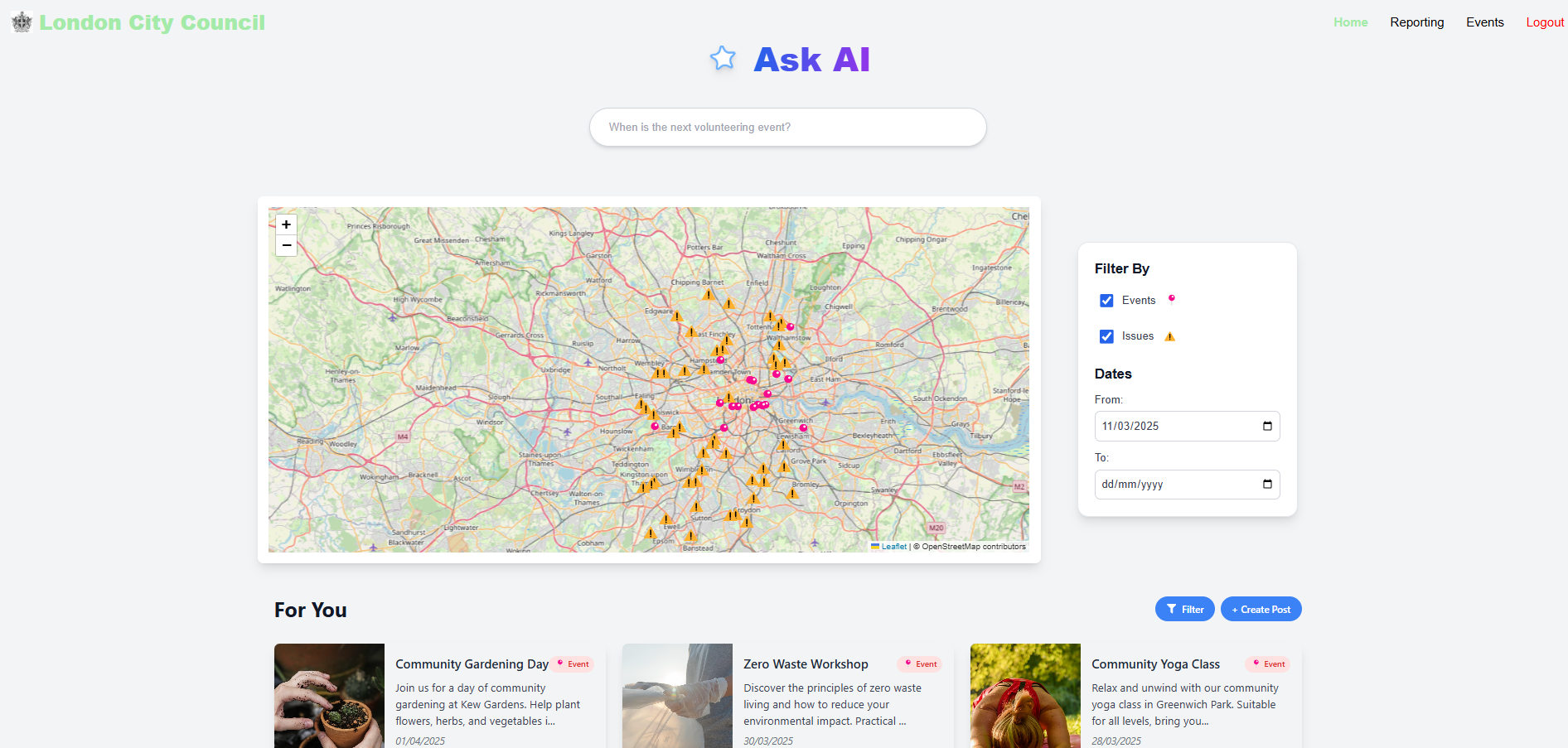

Upon successful signup/login, users are displayed with the homepage view which features an interactive and dynamic UI. It has features like an AI chatbot, interactive map and a for you page.

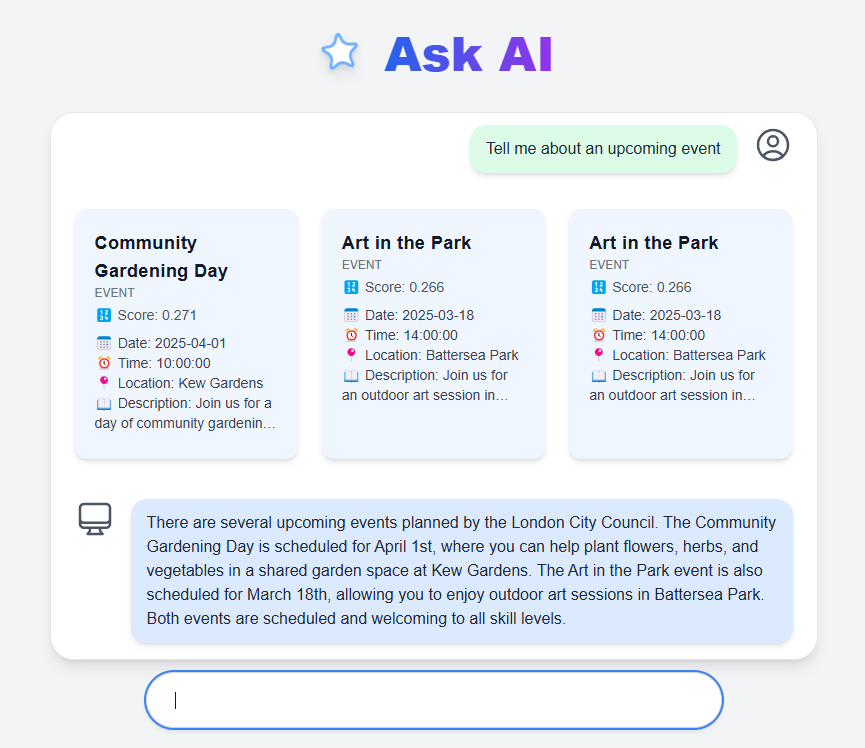

Ask AI

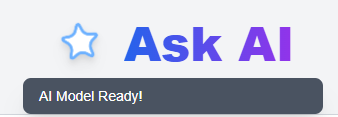

To use the Ask AI feature, simply wait until the model is done loading (we use a web LLM)

After it is done loading , simply type in a query of your choice and it will provide a response with relevant details

Interactive Map

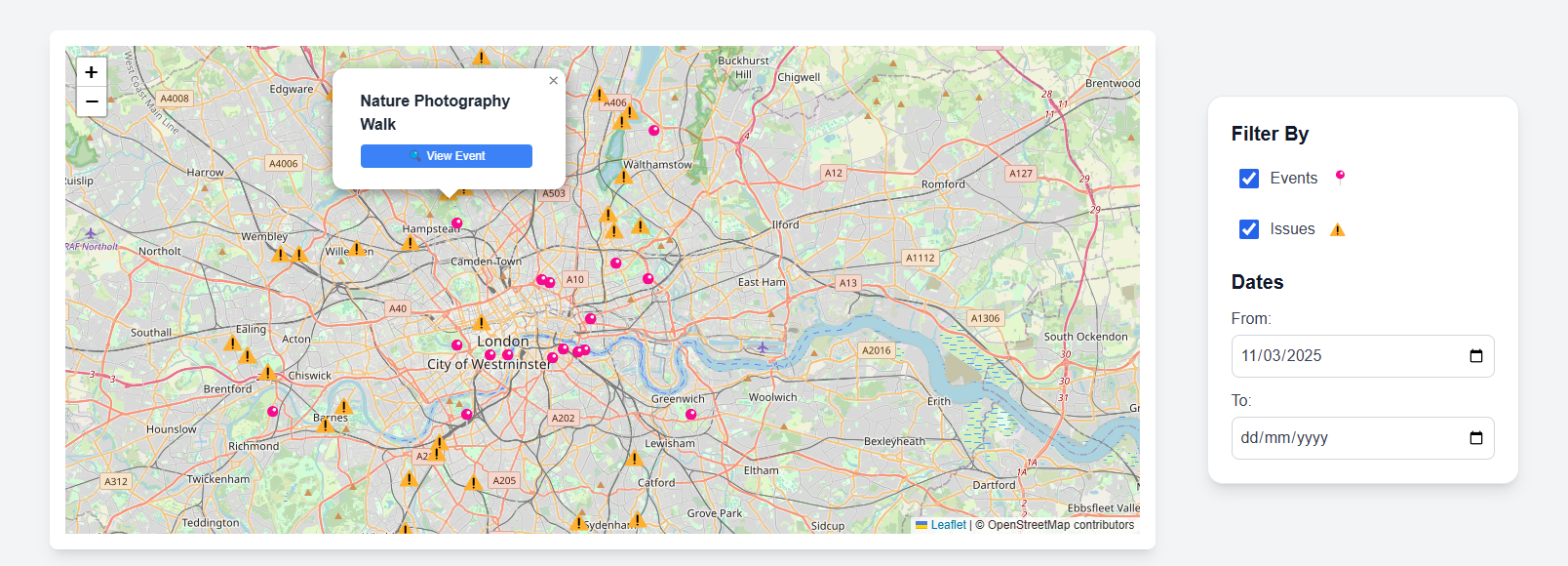

To interact with the map, use two fingers to navigate across the map. Clicking on an issue or a event allows you to view brief details, you can then view the event / issue to get the rest of the details

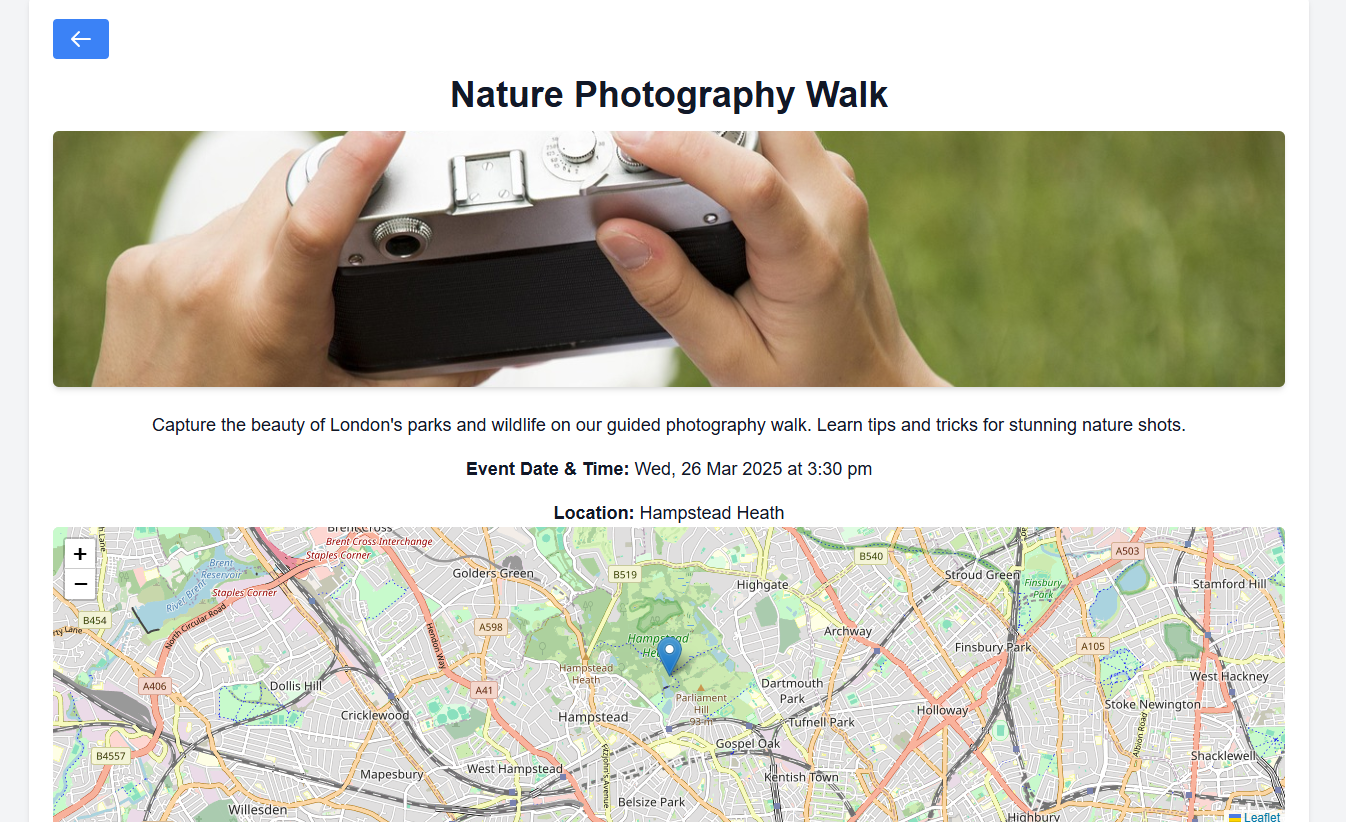

Below is the details of the event which was clicked

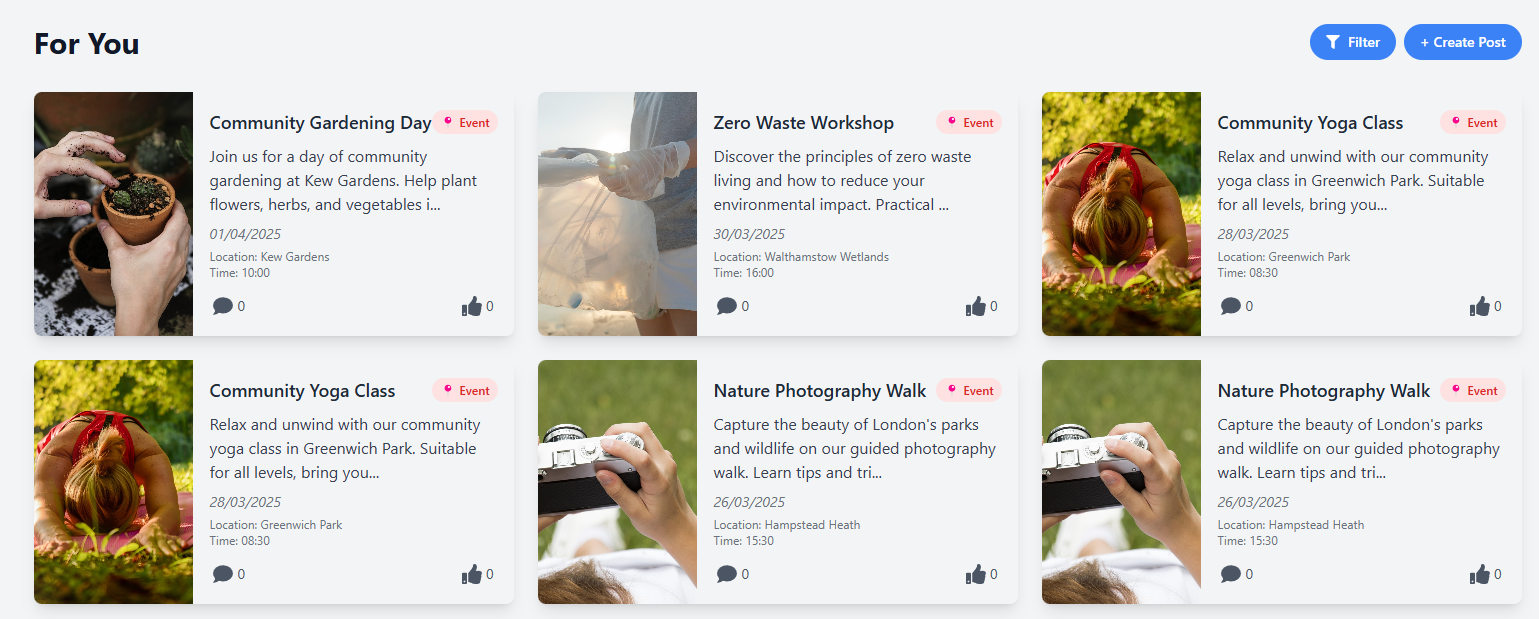

For You Section

In this section users can users can explore articles, events, and reports, as well as interact through discussions and comment upvotes.

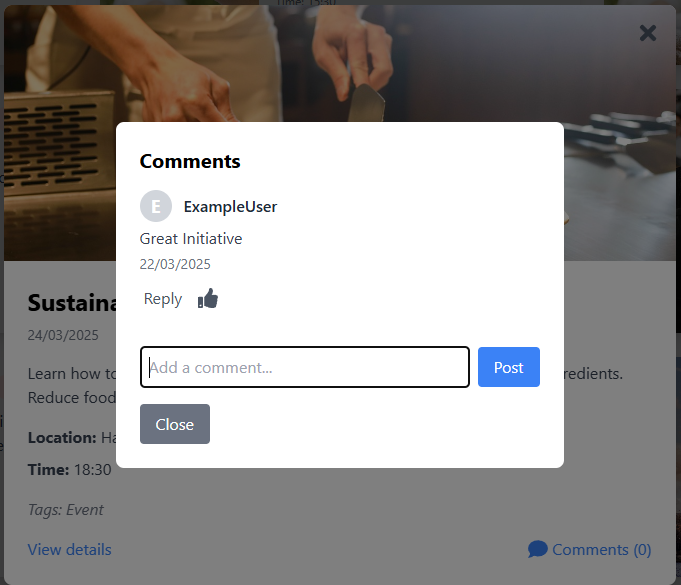

By clicking on a card, then on comments, users can leave comments and reply to other users, being able to voice their opinions on certain initiatives whilst also being able to interact with the community.

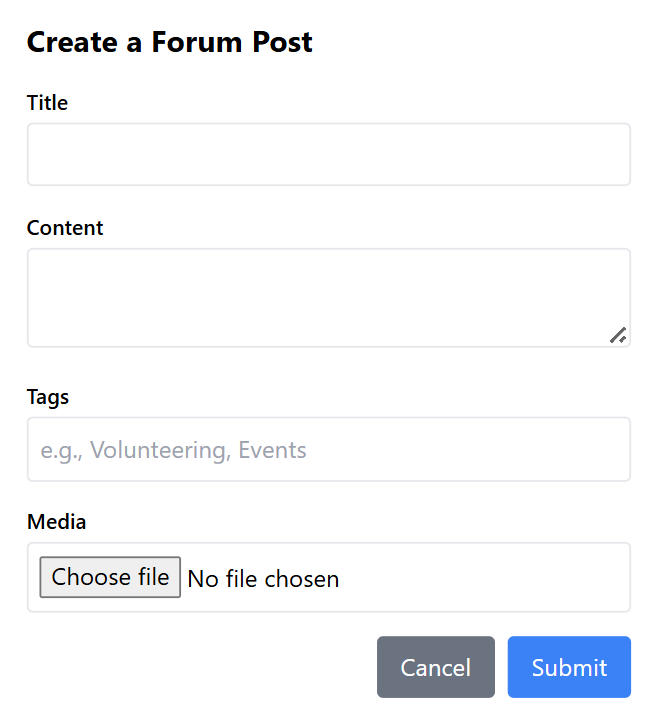

Users can also create forum posts by clicking on the create post button

Create Forum Post	Forum Post Details

Reporting Page

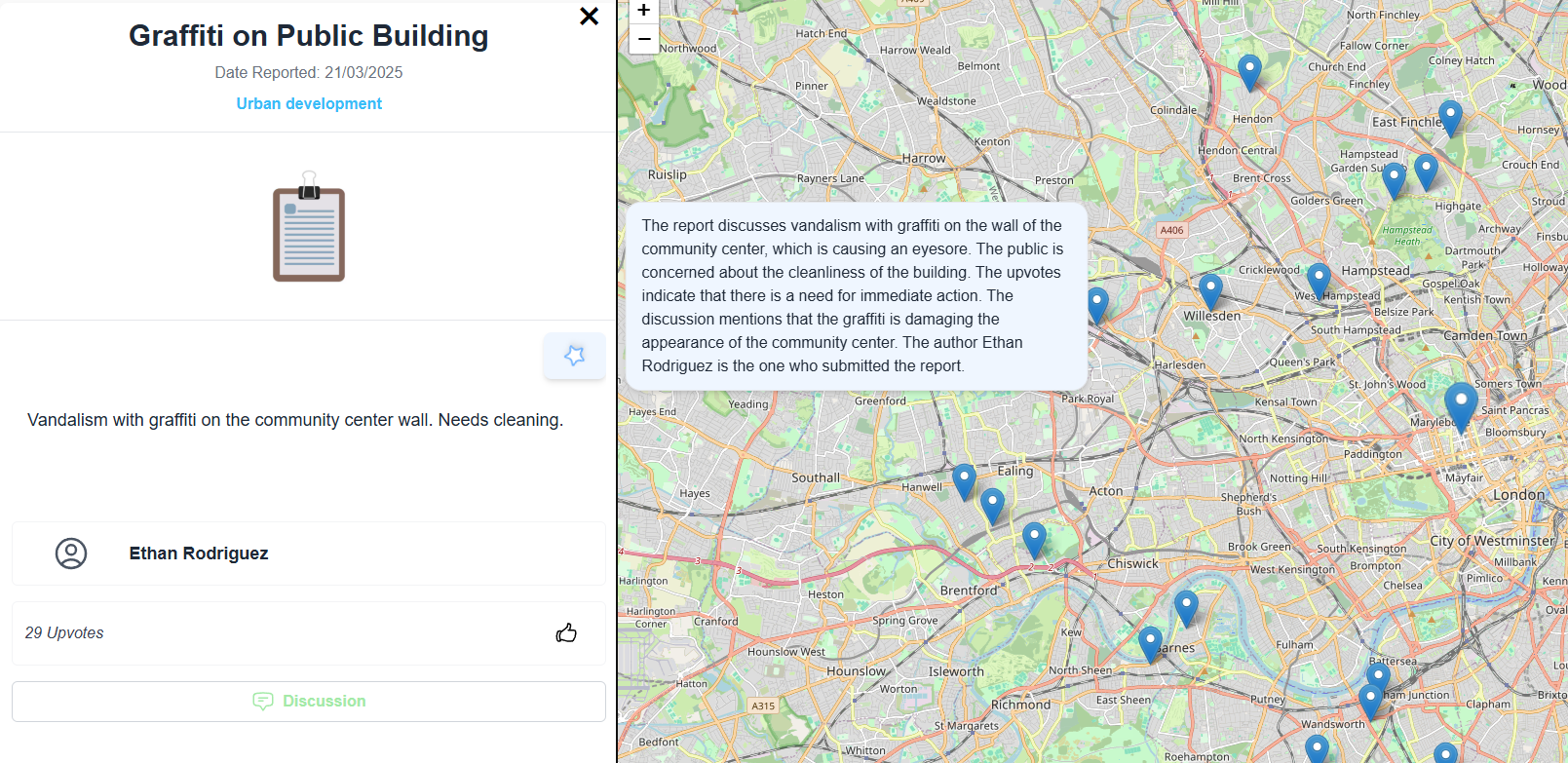

On the reporting page, users get a detailed view of local issues, including discussions created around them. AI has also been incorporated to be able to summarise the content of reports

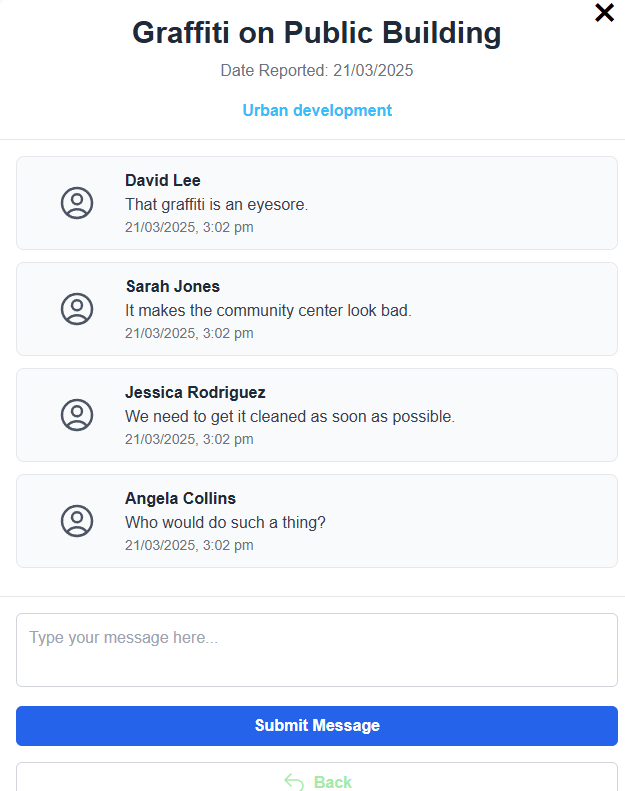

Users can voice their opinions on a certain issue by engaging in conversations

Events page

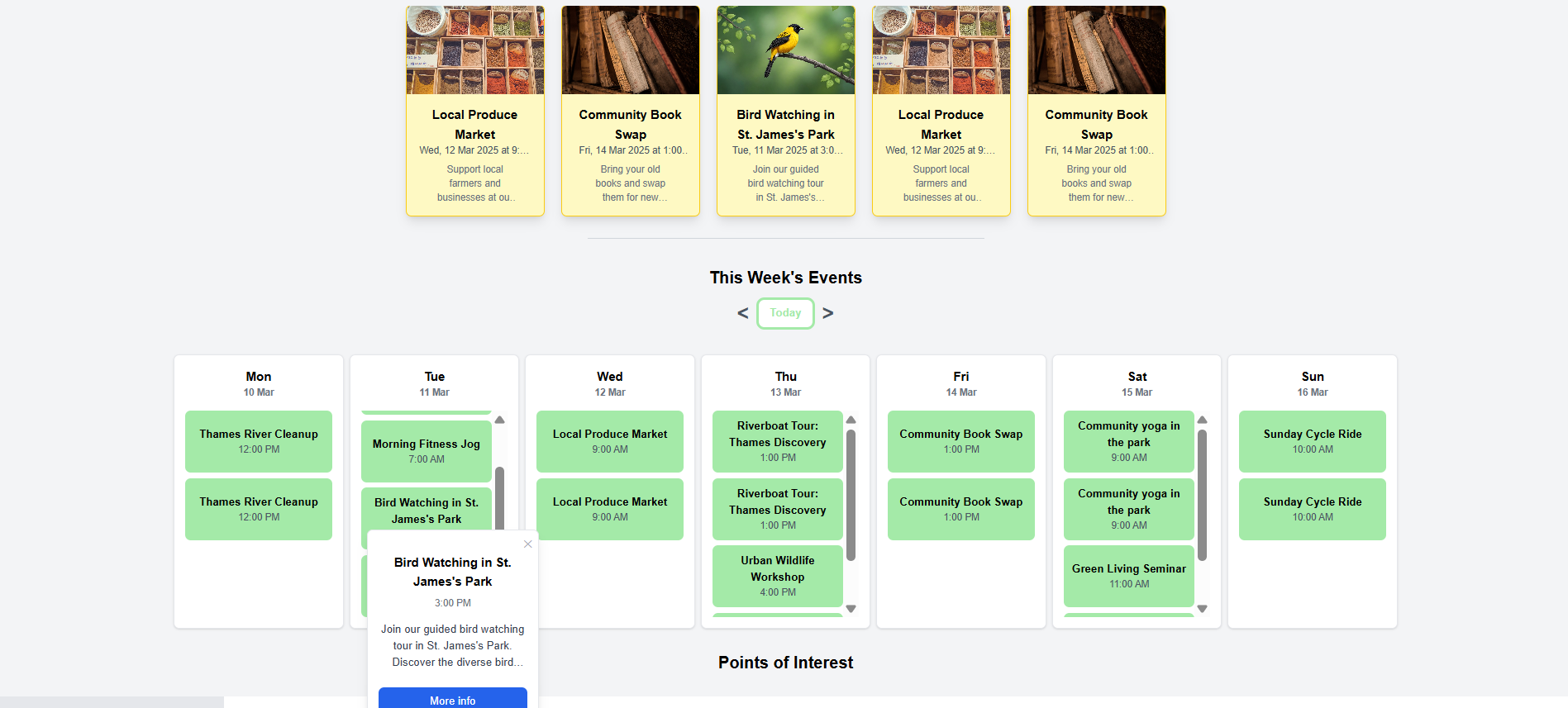

The events page showcases a timeline of featured and upcoming events, along with nearby points of interest like landmarks and parks.

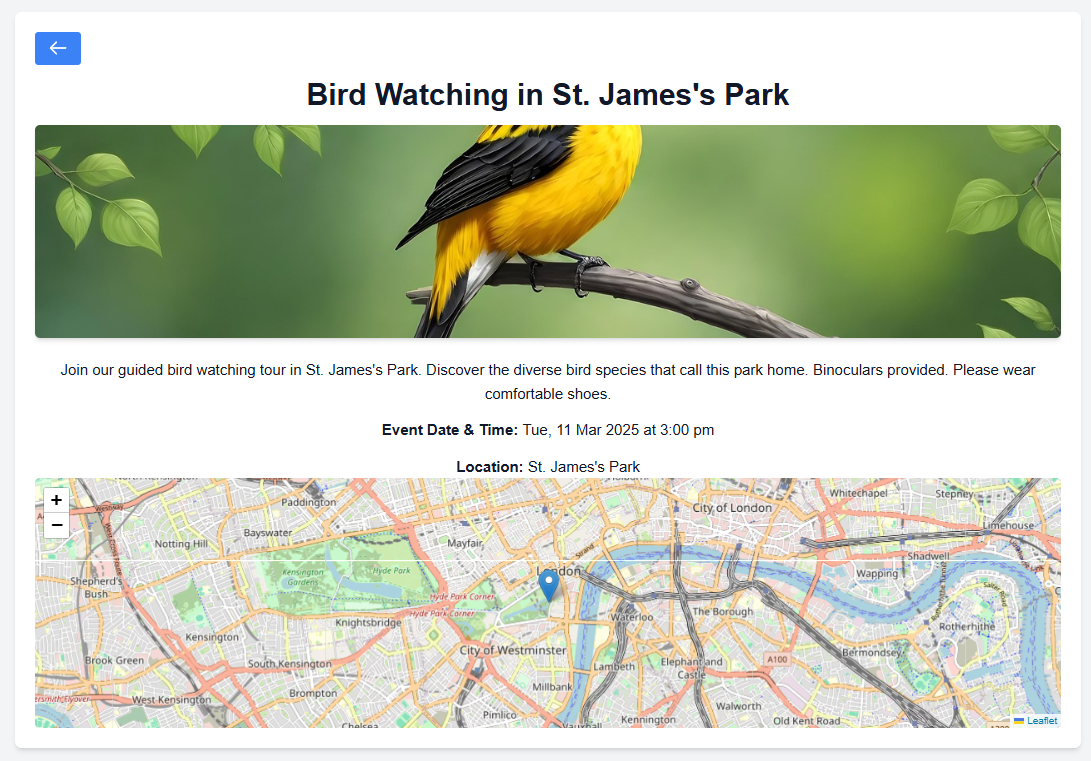

Users can view the full details of any event

Create Forum Post

Forum Post Details

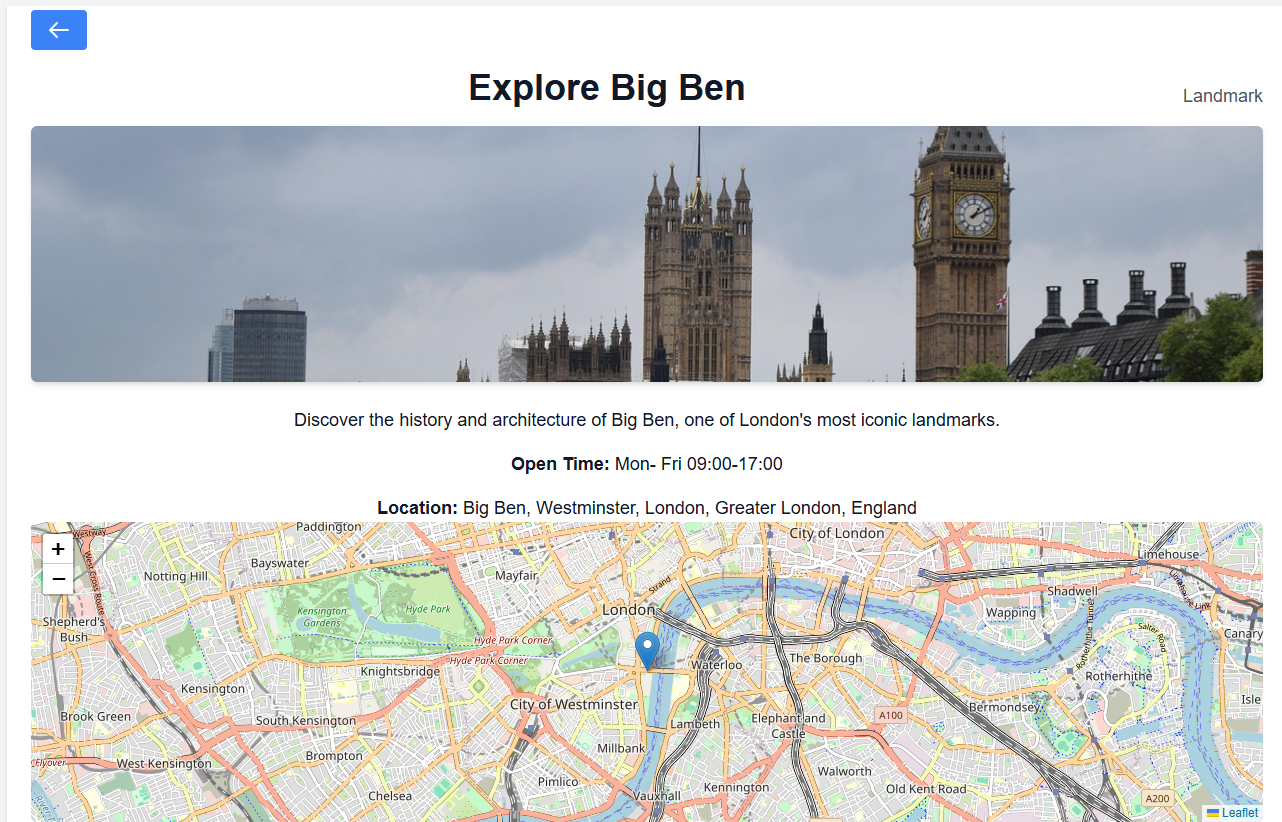

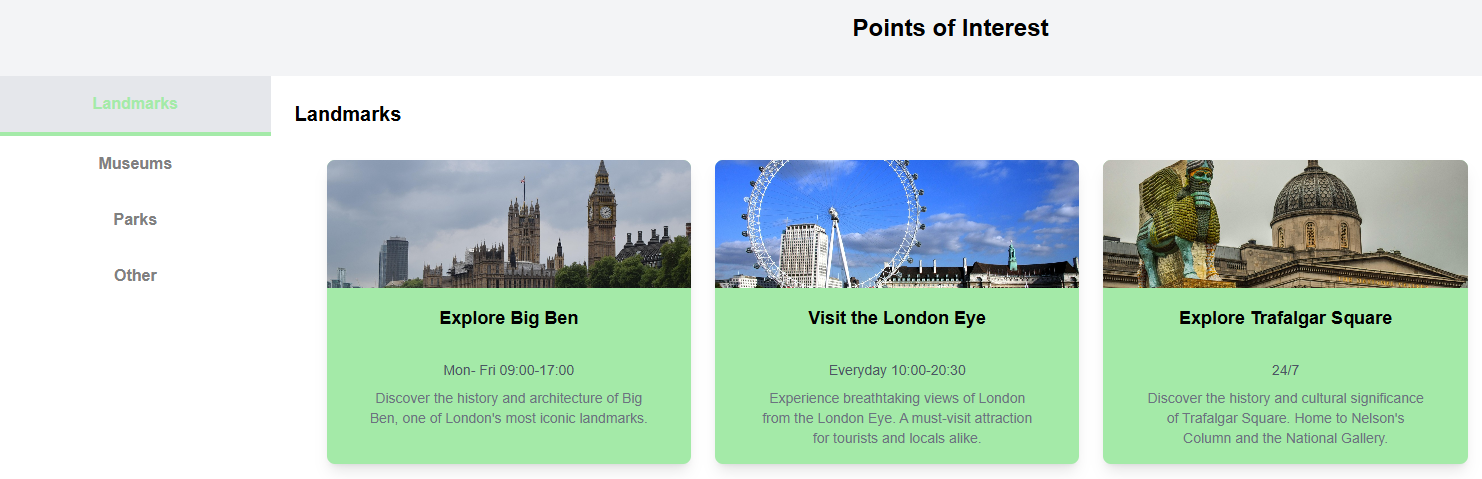

The dedicated points of interest section allows users to see nearby landmarks, museums , parks , etc. , providing further details when clicked

Extra Functionalities - Business Side Perspective

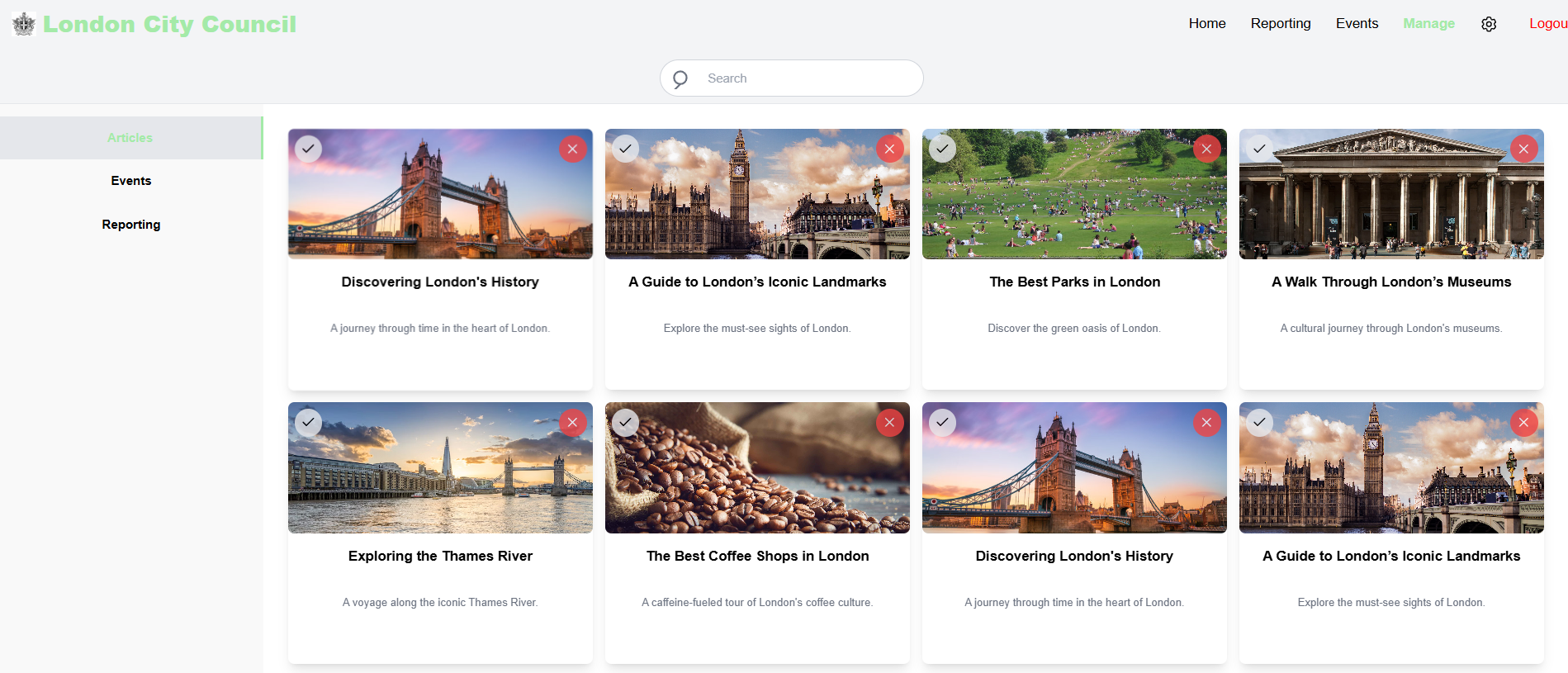

Businesses with sufficient access privileges have the ability to manage content displayed for users , such as issues, events , reports etc. . This is managed via the content management page, where businesses can modify and delete them.

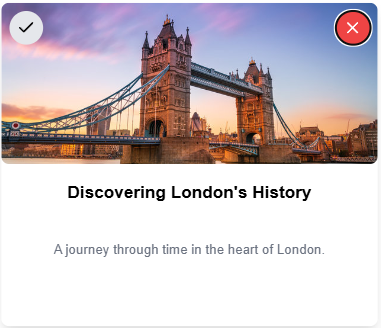

To delete a card , simply press on the card and confirm deletion

Delete card	Confirm Delete

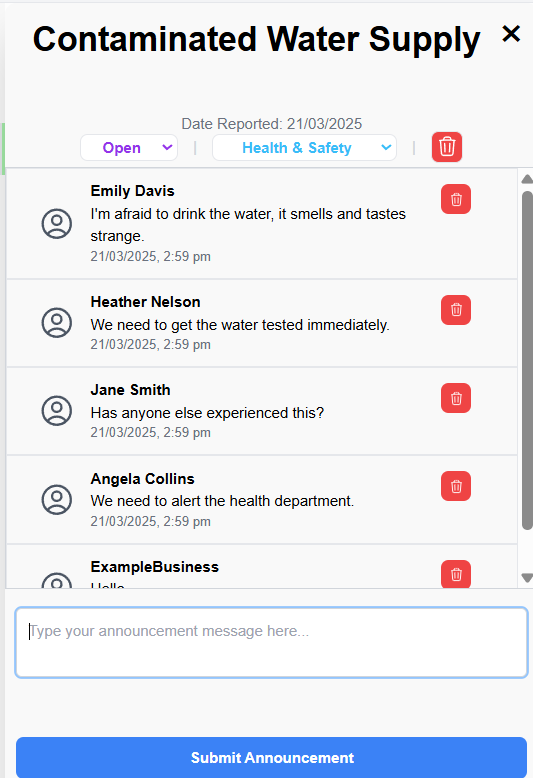

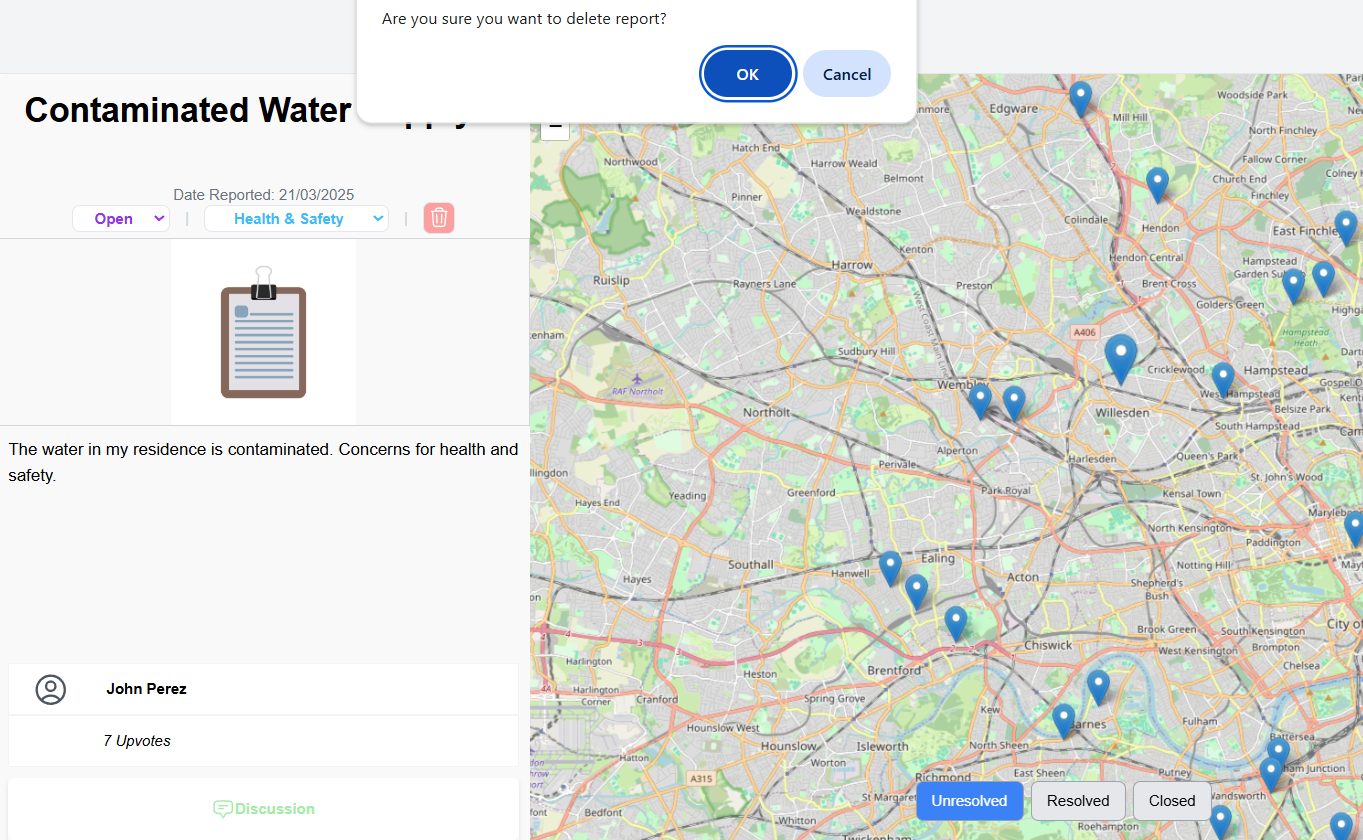

Reports can also be managed in this way by businesses, who can delete reports, and change the status and tags of reports

Comments can also be moderated to remove any offensive or potentially harmful content. Businesses can also add announcement messages for a report, such as an update on it

Businesses can also create articles, events by clicking on the button on the bottom right They can fill out the fields and save the article or event, which is then visible to users.

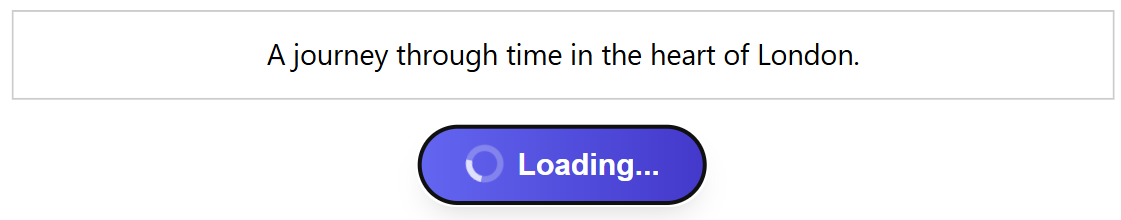

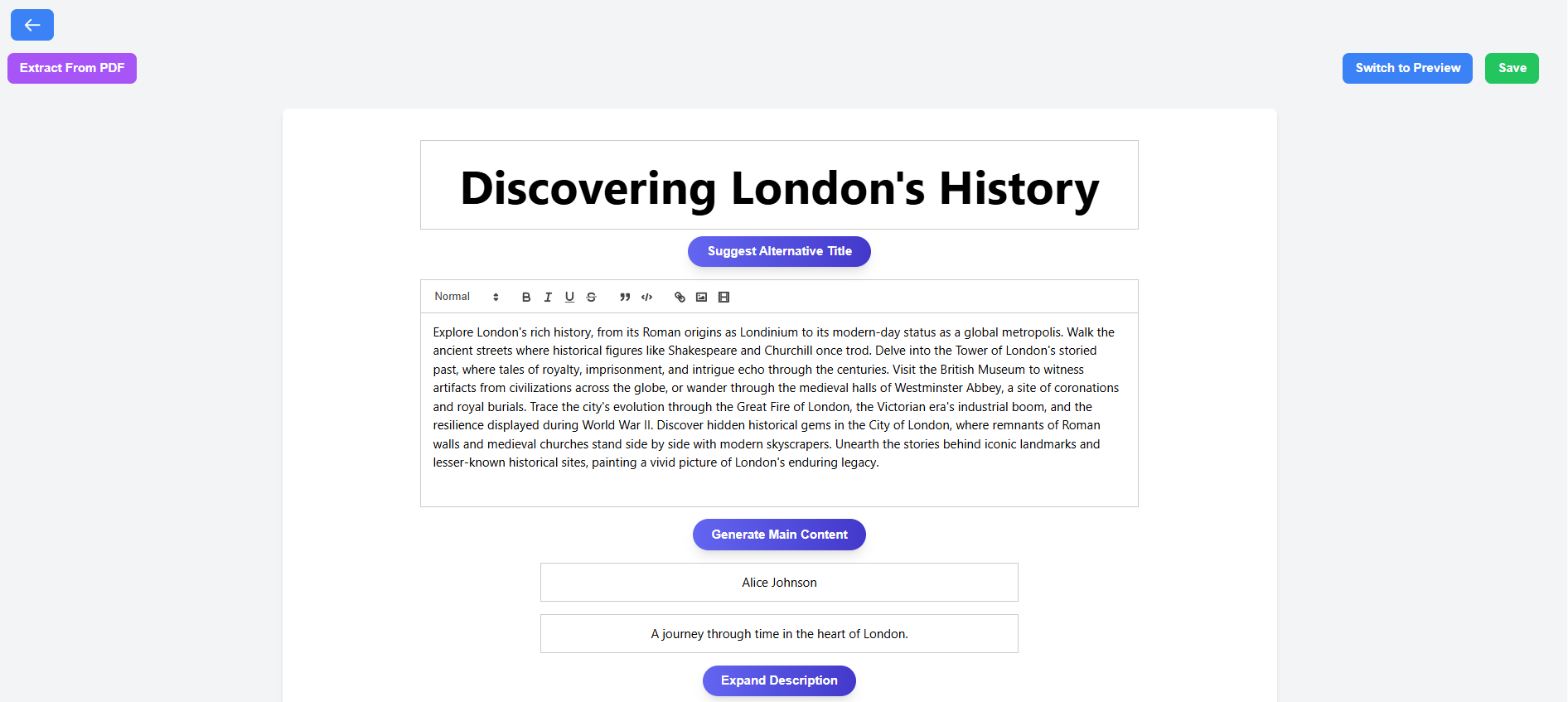

The edit interface also features AI Tooltips which provide a range of features such as suggesting alternative titles, generating the main content and description through a prompt, to optimise time for businesses. Below is an example of an example prompt and the description generated by AI. There is also a extract from pdf section which allows you to upload an unstructured pdf, which is then automatically placed into the correct fields, to create a article / event.

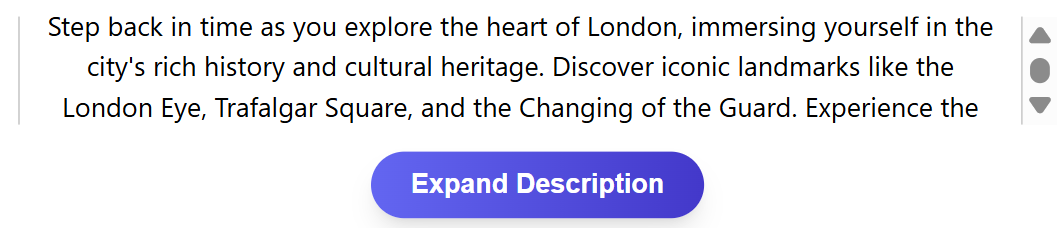

Description Prompt	Expanded Description

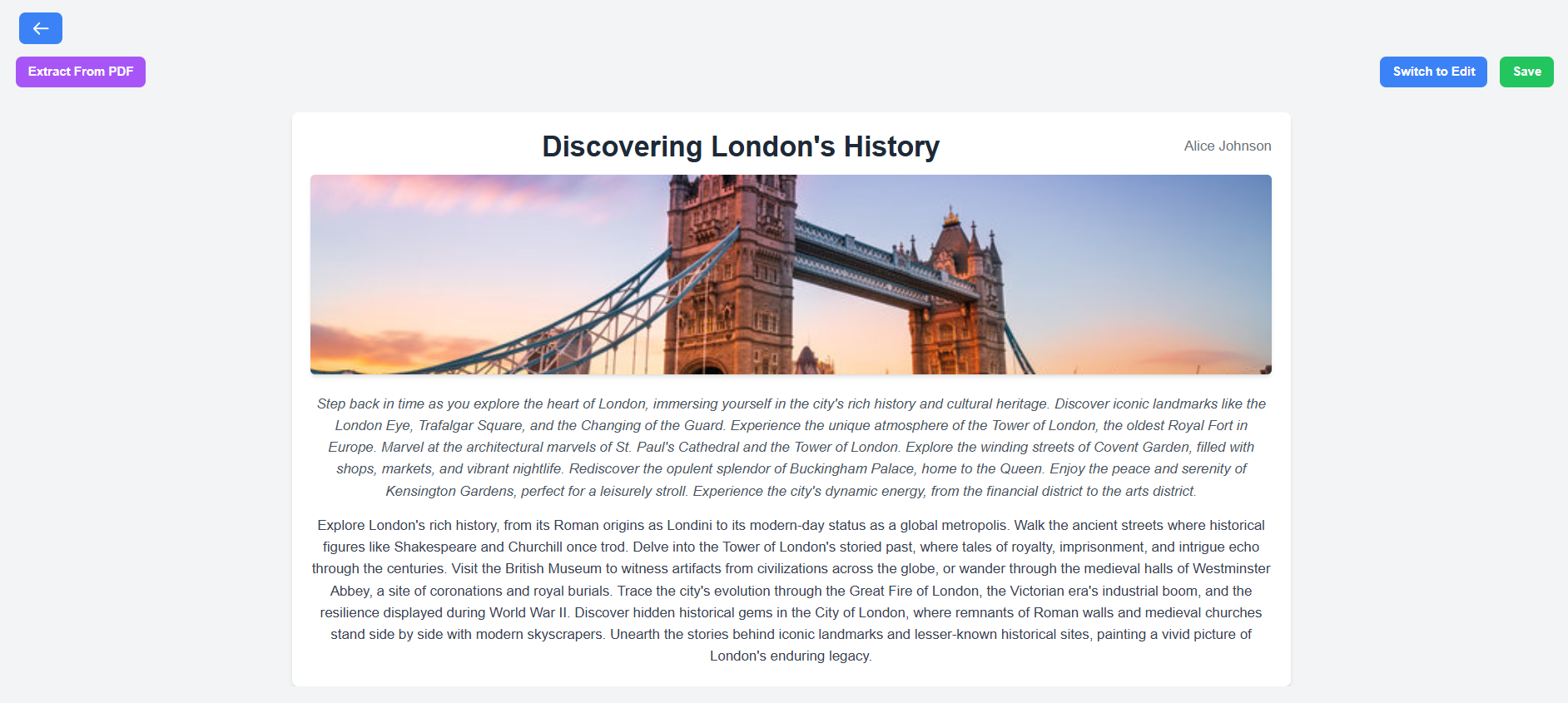

Whilst creating a article or event, businesses can view a live preview of how the page would look like to users

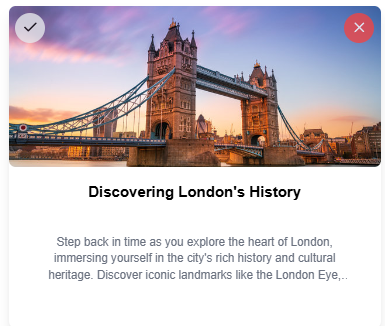

After saving the article, it is displayed on the content management page, and also available on the home page for users.

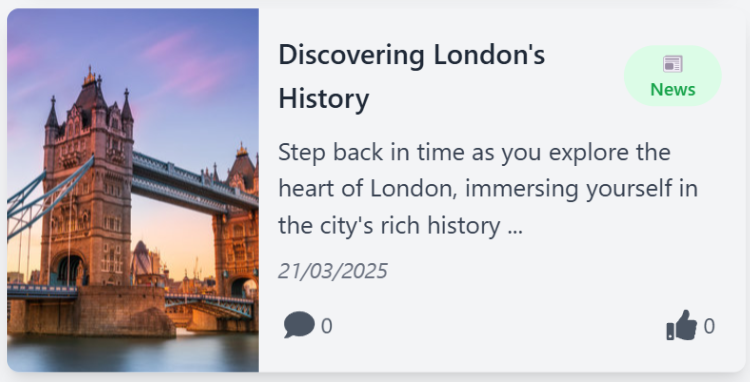

User View	Business (CMS) View

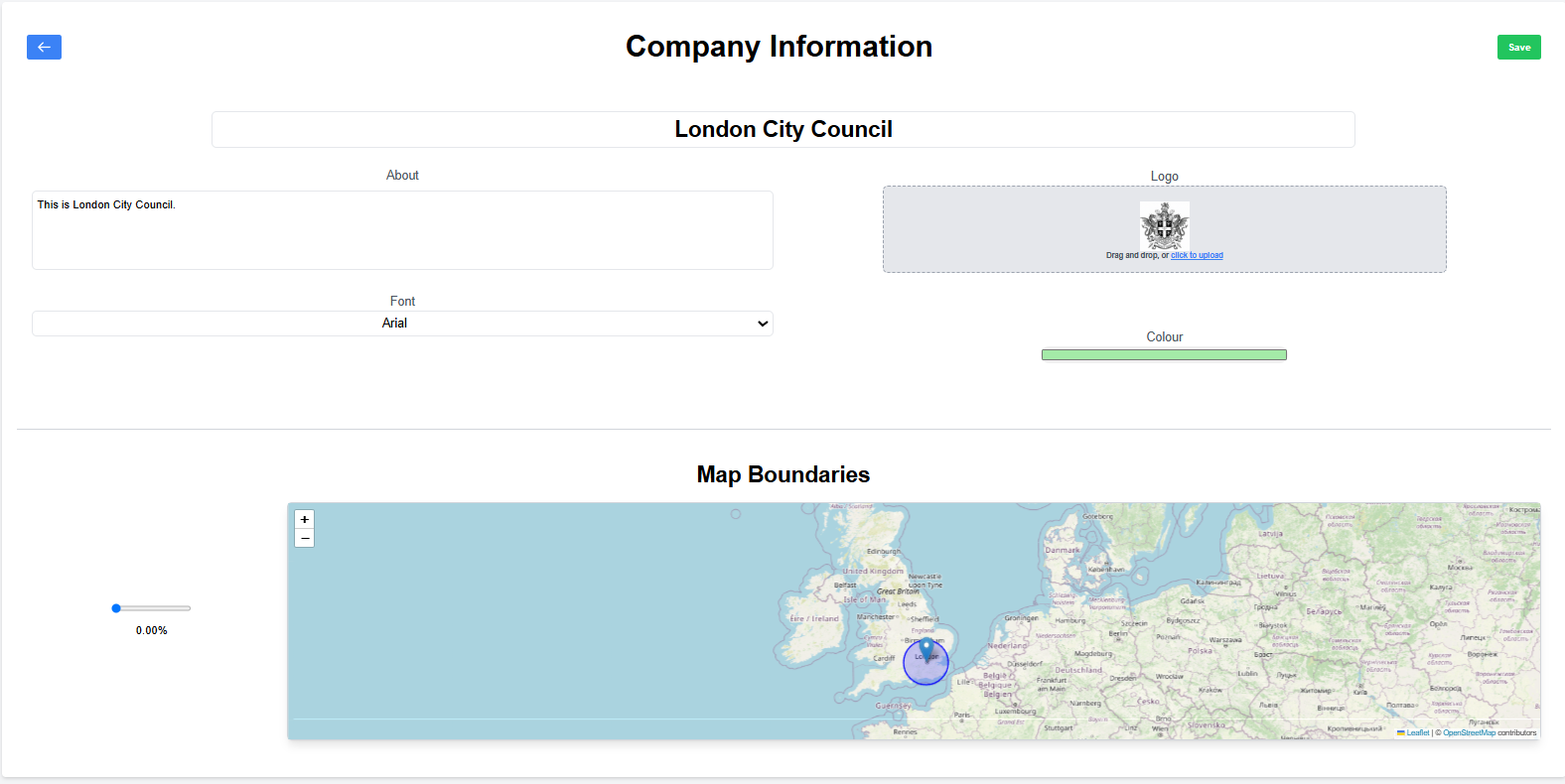

Last but not least, there is also a miscellaneous section for businesses, which can be accessed via the settings icon. Here businesses can customise their name , logo, as well as the font of the site. They can also set the location based on where they are situated, this could be a different city or country for example

Deployment Manual

Backend

Run Development

• Make sure your python version is 3.10 or 3.11
• cd backend
• python -m venv venv
• Activate the Virtual Environment
  • (Linux/Mac) source venv/bin/activate
  • (Windows Powershell) .\venv\Scripts\Activate
  • (Windows Command Prompt) venv\Scripts\activate
• pip install -r requirements.txt
  • These are our Python dependencies/libraries
  • Licences in ThirdPartyNotices.txt
• python manage.py makemigrations
• python manage.py migrate
• python manage.py runserver
• Backend should be up at the 127.0.0.1:8000

Example Data (Optional)

Perform the following steps to populate the database with example data:

• Flush the current database (python manage.py flush) when the backend is not running.
• Run the backend (python manage.py runserver)
• From the backend folder:
  • cd exampledata/
  • python automatic_example_data.py

After running this script, as well as the frontend and backend, you'll be able to login with the following details:

• Username: ExampleBusiness
• Password: 1ExampleBusiness*

Tests

Unit Tests

• python manage.py test

Coverage Report

• coverage run manage.py test
• coverage html --omit="*/test*" -i
• Open backend/htmlcov/index.html to view coverage

Linting

• pylint --load-plugins pylint_django **/*.py

Documentation

• Available at pdocs/index.html
• To rebuild (from the backend folder run): pdoc backend/ accounts/ articles/ events/ api/ comments/ companyinformation/ exampledata/ forums/ likes/ reportdiscussion/ reports/ search/ --output-dir pdocs
• Any further created apps should also be included in the pdoc command (e.g: following on from search/)

Frontend

Run Development

• Make sure you have nodejs.org installed.
• Duplicate .env.example in frontend/ and rename it to .env
• cd frontend
• npm install
  • package.json is our libraries/dependencies for our React frontend
  • Licences in ThirdPartyNotices.txt
• npm run dev

Tests

Unit Tests

• npm run test

Coverage Report

• npm run coverage
• Check coverage folder for index.html to view coverage

Linting

• npx eslint src --max-warnings=0
