JurisBUD AI Implementation
Tools & Dependencies
The language for JurisBUD AI structure and logic is
node.js
Next.js is the frontend framework which is used for JurisBUD AI.
Django is a high-level Python web framework is used to build the backend.
LangChain is used in development of our LLM.
Impl. Overview
1. run JurisBUD AI
JurisBUD AI is packaged using Docker, therefore, we have multiple files that are related to dockerization that group our code altogether, when run.sh is running, the docker script will work to build the application on localhost with creating a docker container.
version: "3.9"
services:
chroma:
image: chromadb/chroma
ports:
- "8000:8000"
volumes:
- data:/chroma/chroma
environment:
- IS_PERSISTENT=TRUE
- ALLOW_RESET=TRUE
backend:
...
2. How JurisBUD AI interacts with user
By developing frontend with Next.js, we made some clear interfaces that are interactively and user-friendly. It includes the Homepage, Spaces, Chats etc. The Django backend is integrated to provide service.
const Home = () => {
const { isAuth, setIsAuth, username, setUsername } = useContext(AuthContext);
const [prompt, setPrompt] = useState("");
useEffect(() => {
if (!isAuth) {
redirect("/");
}
}, [isAuth]);
...
from django.db import models
from api.models import UserProfile
class Tag(models.Model):
name = models.CharField(max_length=100)
color = models.CharField(max_length=7, default='#FFFFFF') # HEX Color
class Group(models.Model):
name = models.CharField(max_length=100)
# members = models.ManyToManyField("api.UserProfile", related_name='groups')
...
LLM Implementation
LLM is the core of JurisBUD AI, it is the AI agents that are used to generate responses for user queries. The implementation is based on LangChain.
Task List Implementation
def parse_task_list(output):
# if not function invoked, return to user
if "function_call" not in output.additional_kwargs:
return AgentFinish(return_values={"output": output.content}, log=output.content)
# parse out function call
function_call = output.additional_kwargs["function_call"]
name = function_call["name"]
input = json.loads(function_call["arguments"])
...
Database Implementation
chroma_client = None
for _ in range(15):
try:
chroma_client = chromadb.HttpClient(
host="localhost", port="8000", settings=Settings(allow_reset=True)
)
except Exception:
sleep(1)
if not chroma_client:
raise Exception("Chroma client not found")
print("Chroma client found")
chroma_client.reset()
...
Agents Implementation
organiser_agent = (
{
"input": lambda x: x["input"],
"agent_scratchpad": lambda x: format_to_openai_function_messages(
x["intermediate_steps"]
),
}
| organiser_prompt
| organiser_llm
| parse_task_list
)
solver_agent = (
{
"input": lambda x: x["input"],
"agent_scratchpad": lambda x: format_to_openai_function_messages(
x["intermediate_steps"]
),
}
| solver_prompt
| solver_llm
| parse_task_list
)
...

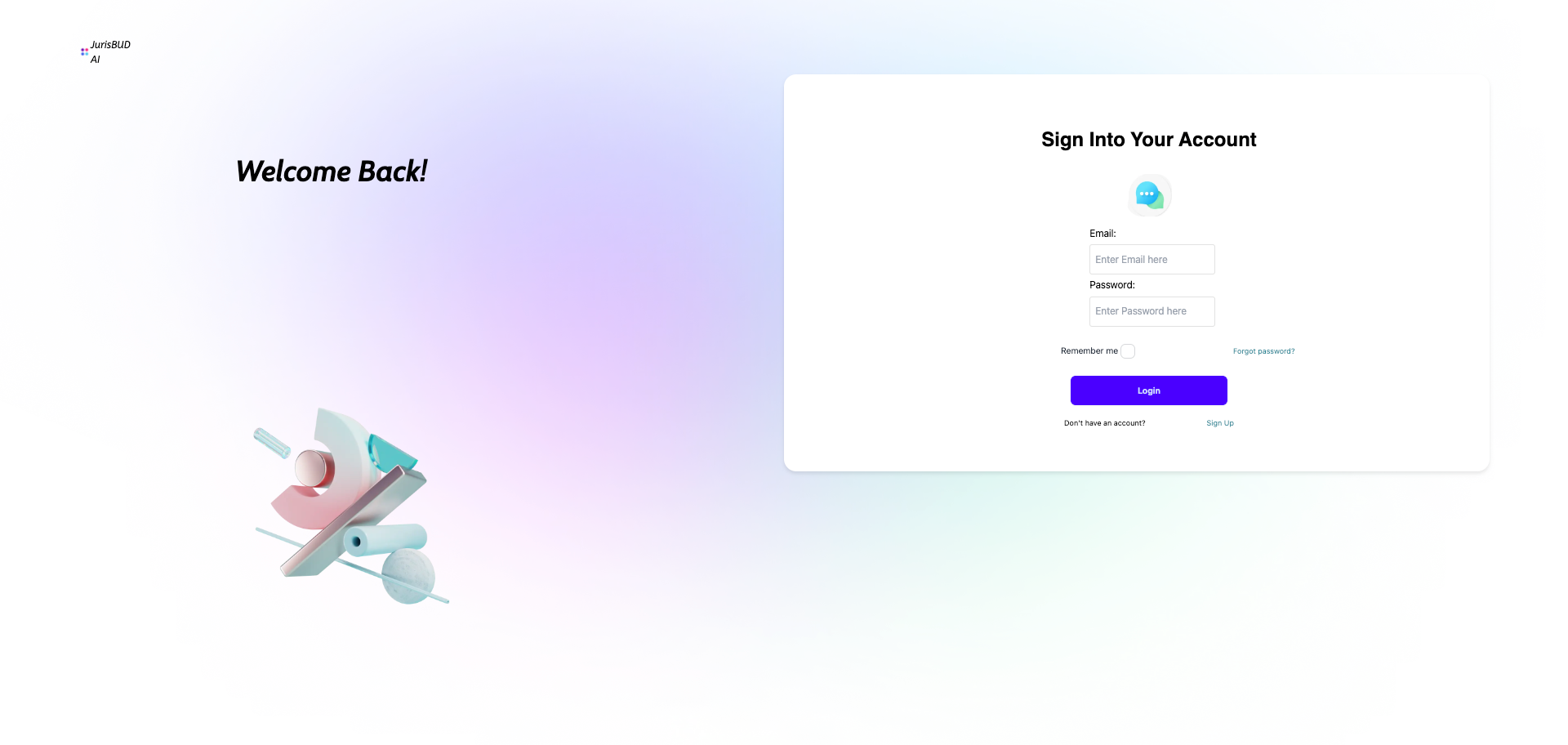

Signup/Login Implementation
Frontend
export default function SignUp() {
const {isAuth, setIsAuth, username, setUsername} = useContext(AuthContext);
const [errors, setErrors] = useState({...default_errors});
const [showModal, setShowModal] = useState(false);
const handleSignUp = async (e: any) => {
e.preventDefault();
const form = e.target;
const formData = new FormData(form);
console.log("formdata:", formData);
try{
const response = await apiClient.post('/signup', {body: JSON.stringify(Object.fromEntries(formData))});
const data = await response.json();
console.log('Signup')
if (!response.ok)
...
Backend
class UserProfileAdmin(UserAdmin):
ordering = ['email']
list_display = ['email', 'name', 'is_admin', 'is_superuser']
search_fields = ['email', 'name']
list_filter = ['is_admin', 'is_superuser']
admin.site.register(UserProfile, UserProfileAdmin)
@admin.register(Tag)
class TagAdmin(admin.ModelAdmin):
list_display = ['name']
...
Login system provides a simple registration and login logic that is a basic model gives users specific id for tracking histories etc.
Chat Generation Implementation
Frontend
const sendRequest = () => {
setLoading(true); // Start loading
// Here you would replace 'your-api-endpoint' with your actual API endpoint
// and adjust headers and body according to your API requirements
apiClient
.post("/chat/create", {
headers: {
"Content-Type": "application/json",
Authorization: "Token " + localStorage.getItem("token"),
},
body: JSON.stringify({ prompt: inputValue }),
})
.then((response) => response.json())
.then((data) => {
console.log(data);
setResponse(data);
setLoading(false); // Stop loading after the data is received
})
.catch((error) => {
console.error("Error:", error);
setLoading(false); // Stop loading after the data is received
});
};
const sendReloadRequest = () => {
setLoading(true); // Start loading
apiClient
.post("/chat/reload", {
headers: {
"Content-Type": "application/json",
Authorization: "Token " + localStorage.getItem("token"),
},
...
Backend
class Chat(models.Model):
created_at = models.DateTimeField(auto_now_add=True)
title = models.CharField(max_length=2000, blank=True, default="")
tags = models.ManyToManyField(Tag, related_name="chats", blank=True)
prompt = models.CharField(max_length=400)
author = models.ForeignKey(
"api.UserProfile", related_name="chats", on_delete=models.CASCADE
)
response = models.TextField()
...

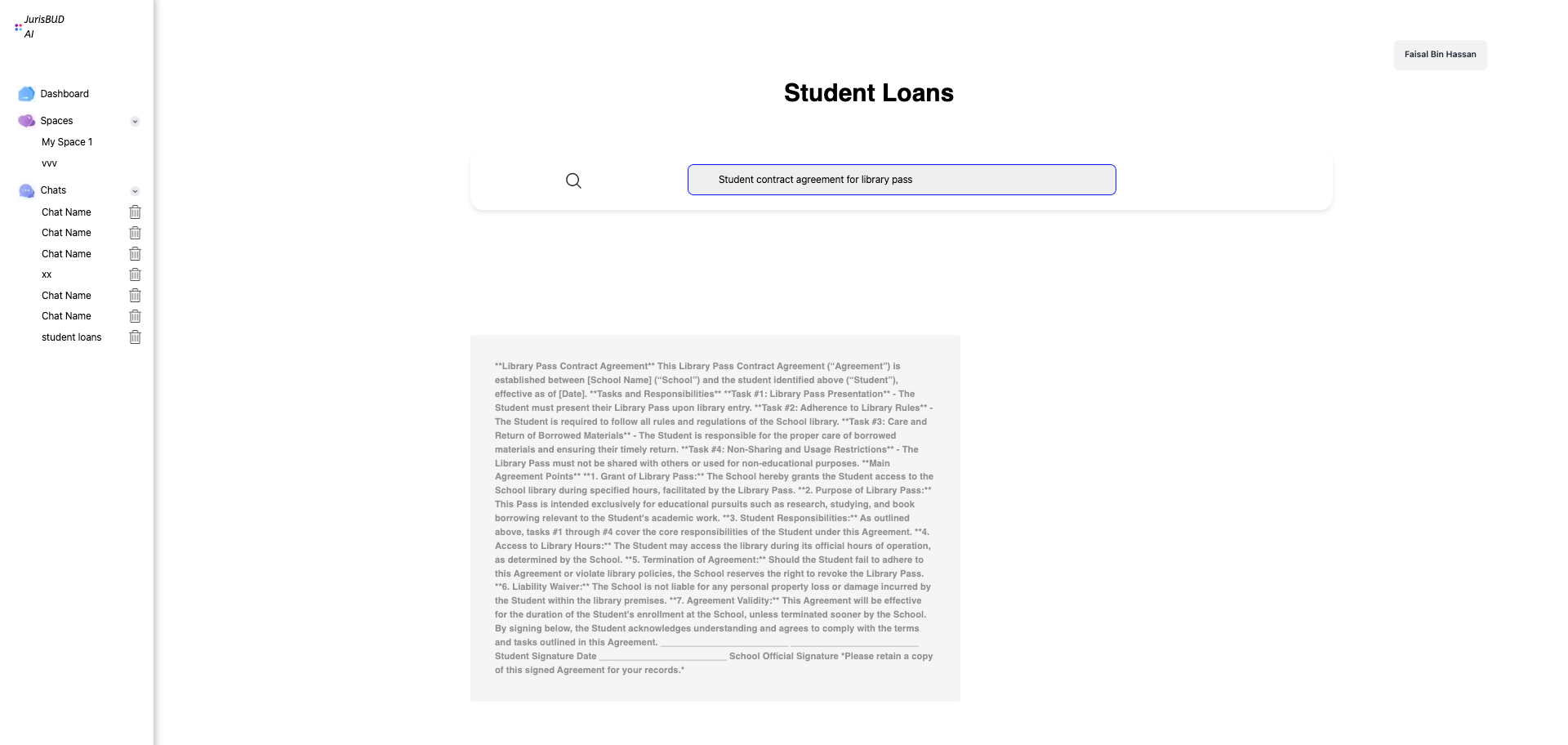

As user raise a query, the AI agents will work to generate a task list and then solve it with a respondse shown to the user. The AI agents implementation will be discussed later.

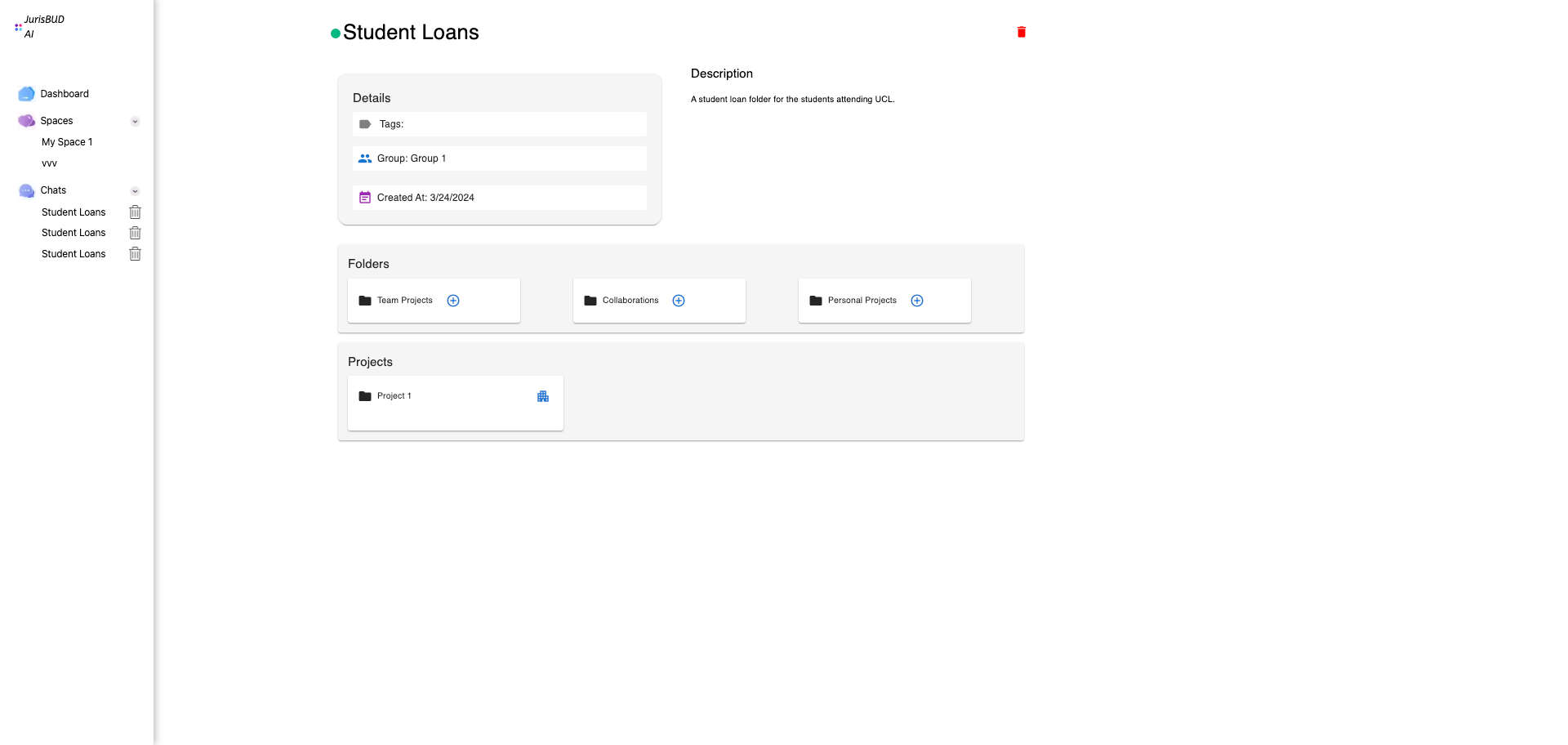

Space Implementation
Space is the concept that used for categorization. It gives users an interface for managing multiple chats into one places with description, tags, and folders.
Frontend
interface Space {
id: number;
group: Group;
tags: Tag[];
name: string;
description: string;
created_at: string; // This could also be of type Date if you're converting strings to Date objects
owner: number; // Assuming 'owner' refers to the user ID, but you can change the type if needed
}
const Chats = ({ params }) => {
const [loading, setLoading] = useState(false); // S
const [space, setSpace] = useState();
useEffect(() => {
// You can use the 'id' here
if (params.id) {
apiClient
...
Backend
class Space(models.Model):
name = models.CharField(max_length=100)
description = models.TextField(blank=True)
created_at = models.DateTimeField(auto_now_add=True)
tags = models.ManyToManyField(Tag, related_name='spaces')
group = models.ForeignKey(
Group, on_delete=models.CASCADE, related_name='spaces')
owner = models.ForeignKey(
'api.UserProfile', on_delete=models.CASCADE, related_name='owned_spaces')
def add_member(self, user):
self.group.members.add(user)
...

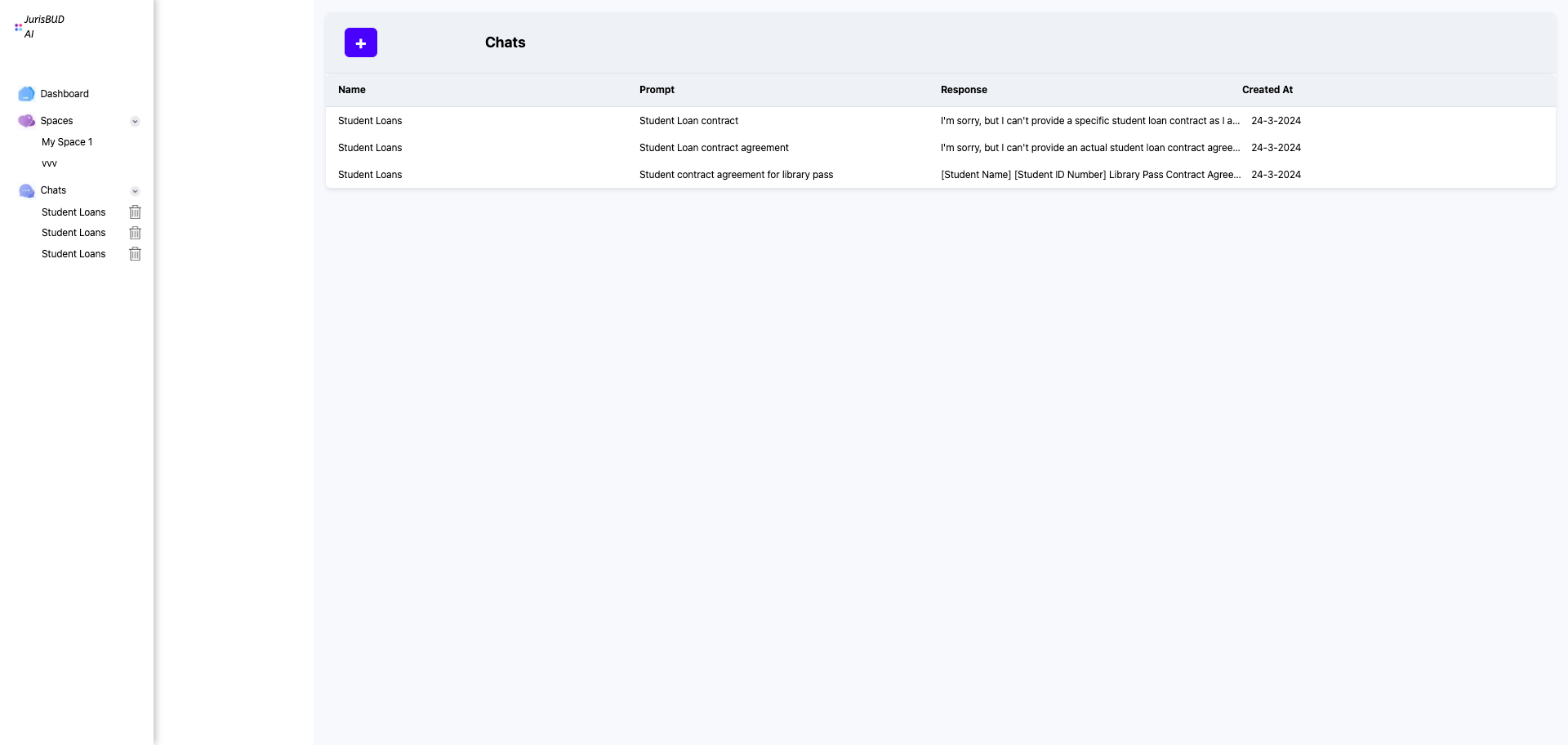

Chats Menu Implementation
Chat Menu is a place for all chats staying together that being available for users to check anytime. It is binding with users' login information.
Frontend
useEffect(() => {
const getChats = async () => {
try {
const response = await apiClient.get("/chats", {
headers: {
Authorization: "Token " + localStorage.getItem("token"),
},
});
if (response.ok) {
const data = await response.json();
setChats(data.chats);
} else if (response.status == 401) {
setIsAuth(false);
...
Backend
@api_view(["GET"])
@authentication_classes([SessionAuthentication, TokenAuthentication])
@permission_classes([IsAuthenticated])
def list_chats(request, format=None):
chats = Chat.objects.filter(author=request.user)
serializer = ChatSerializer(instance=chats, many=True)
return Response({"chats": serializer.data})
...
PDF to Text Extraction
PDF to Text is an important functionality for us to handleling PDF files to transfer them into embeddings in our database. It is implemented by Python package pdfminer.
def pdf_to_text(pdf_content):
"""Converts PDF file to text using pdfminer."""
try:
# pdf_text = extract_text(pdf_path)
file_data = io.BytesIO(pdf_content)
pdf_text = extract_text(file_data)
# Convert the extracted text to a string
return clean_and_extract_important_text(pdf_text)
except Exception as e:
return str(e)
